In-depth Analysis of Air Filters: Principles, Functions and Maintenance Tips

The air filter, as an important component of the intake system of a car engine, its performance directly affects the working efficiency of the engine and the service life of the vehicle. This article will delve deeply into the principle, function and maintenance methods of air filters, helping car owners better understand and use this key component.

I. The Principle of Air Filters

The main working principle of an air filter is to block and adsorb impurities in the air through a filtering medium. When air flows through the filter, the filter medium (usually filter paper or filter element) effectively blocks solid impurities such as dust, pollen and grinding particles, preventing them from entering the engine interior. Meanwhile, the filter can also adsorb harmful gases and substances in the air such as moisture, soot, ozone, odors, carbon oxides, SO2, and CO2, ensuring that the air quality entering the engine reaches the best state.

Ii. Function of the Air Filter

Air filters play a crucial role in vehicles. Firstly, it closely adheres to the housing of the engine intake system to ensure that unfiltered air does not enter the cabin, providing a clean interior environment for the driver and passengers. Secondly, the air filter can effectively separate solid impurities such as dust and pollen in the air, preventing them from entering the engine and protecting it from wear and damage. In addition, the air filter can strongly adsorb harmful gases and substances in the air, preventing the car glass from being covered with water vapor, ensuring the driver's clear vision and thereby enhancing driving safety.

In addition to the above functions, the air filter also helps keep the air in the driver's cabin clean and prevent the growth of bacteria. By filtering and adsorbing harmful substances in the air, the air filter provides a healthy and comfortable riding environment for drivers and passengers.

Iii. Structure and Requirements of Air Filters

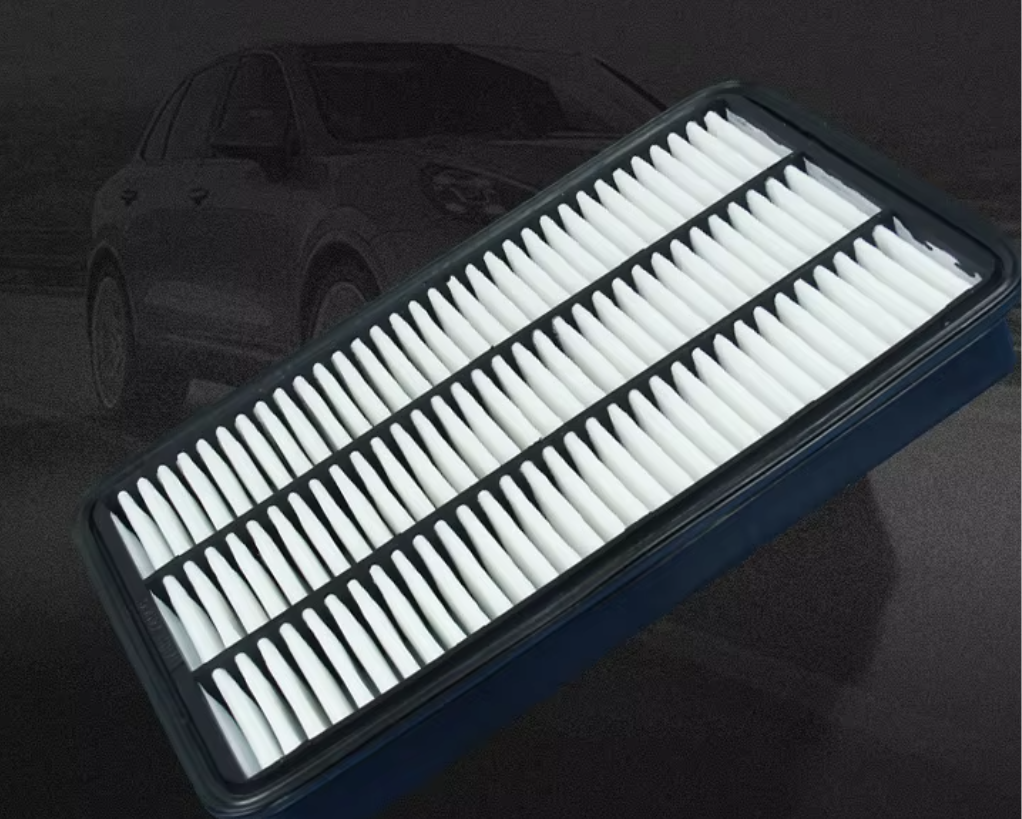

An air filter is usually composed of an air intake duct, an air filter cover, an air filter housing and a filter element, etc. The filter element is the core component of the filter and is responsible for the main task of filtering gas. The casing provides the necessary protection for the filter element to prevent it from being damaged.

The air filter needs to meet a series of requirements when in operation. First of all, it must be capable of undertaking highly efficient air filtration work to ensure that as many impurities as possible are filtered out. Secondly, when the filter is filtering air, it should not add excessive resistance to the air flow to ensure the normal air intake of the engine. Finally, the filter needs to be capable of continuous operation for a long time and have good durability and stability.

Iv. Replacement and Maintenance of Air Filters

As the usage time increases, the filter element of the air filter will gradually accumulate dust and impurities, resulting in a decline in its filtration effect. Therefore, regularly replacing the air filter element is the key to maintaining the engine in good working condition.

When replacing the air filter, first open the engine hood and locate the position of the air filter. Then, loosen the filter lock, remove the nut that fixes the filter element, take off the cover and pull out the filter element. When removing the filter element, be careful to prevent impurities from falling into the engine interior. Next, thoroughly clean the filter box to ensure there are no residual impurities inside. Finally, install the prepared new air filter and ensure that the filter element is firmly installed and free from external contamination.

In addition to regularly replacing the filter element, the daily maintenance of the air filter is also very important. Car owners should regularly check the condition of the filter to ensure that there is no damage, deformation or blockage, etc. At the same time, it is necessary to pay attention to cleaning the filter housing to avoid the accumulation of dust and dirt. During the maintenance process, the following points should also be noted:

When the dust in the dust collection cup exceeds one-third of the cup body, it is necessary to remove the dust in time and clean the dirt in the central pipeline at the same time. When installing the dust collection cup, make sure the gasket is properly installed and pay attention to its sealing performance.

Regularly check the engine oil in the oil pan of the oil bath air filter. If the oil is insufficient or thickened, add or replace it in time. When changing the engine oil, be sure that the oil level does not exceed the annular groove in the oil pan to prevent the oil from being sucked into the engine cylinder.

Clean the metal filter screen regularly based on the vehicle's usage and working environment. When cleaning, first remove the oil stains and impurities on the surface of the filter screen thoroughly, then soak it in the cleaning solution and gently scrub it with a soft brush. After cleaning, the filter screen should be thoroughly dried to ensure there is no residual water or cleaning solution.

For dry paper filter elements, diesel cleaning is not allowed. When maintaining, you can gently tap both ends of the filter element to shake off the dust, and then use a soft-bristled brush or compressed air to blow it clean from the reverse side. When installing the filter element, it is necessary to avoid the filter element being contaminated by oil or other contaminants.

In conclusion, as an important component of the intake system of a car engine, the performance and service life of the air filter directly affect the working efficiency of the engine and the service life of the vehicle. Therefore, car owners should fully understand the principle, function and maintenance methods of air filters to ensure that they work in the best condition and provide clean and efficient air supply for the vehicle. By regularly replacing the filter element and conducting daily maintenance, the service life of the air filter can be prolonged, the working efficiency of the engine can be improved, and thus a safer and more comfortable driving experience can be brought to the car owner.
